EN13236

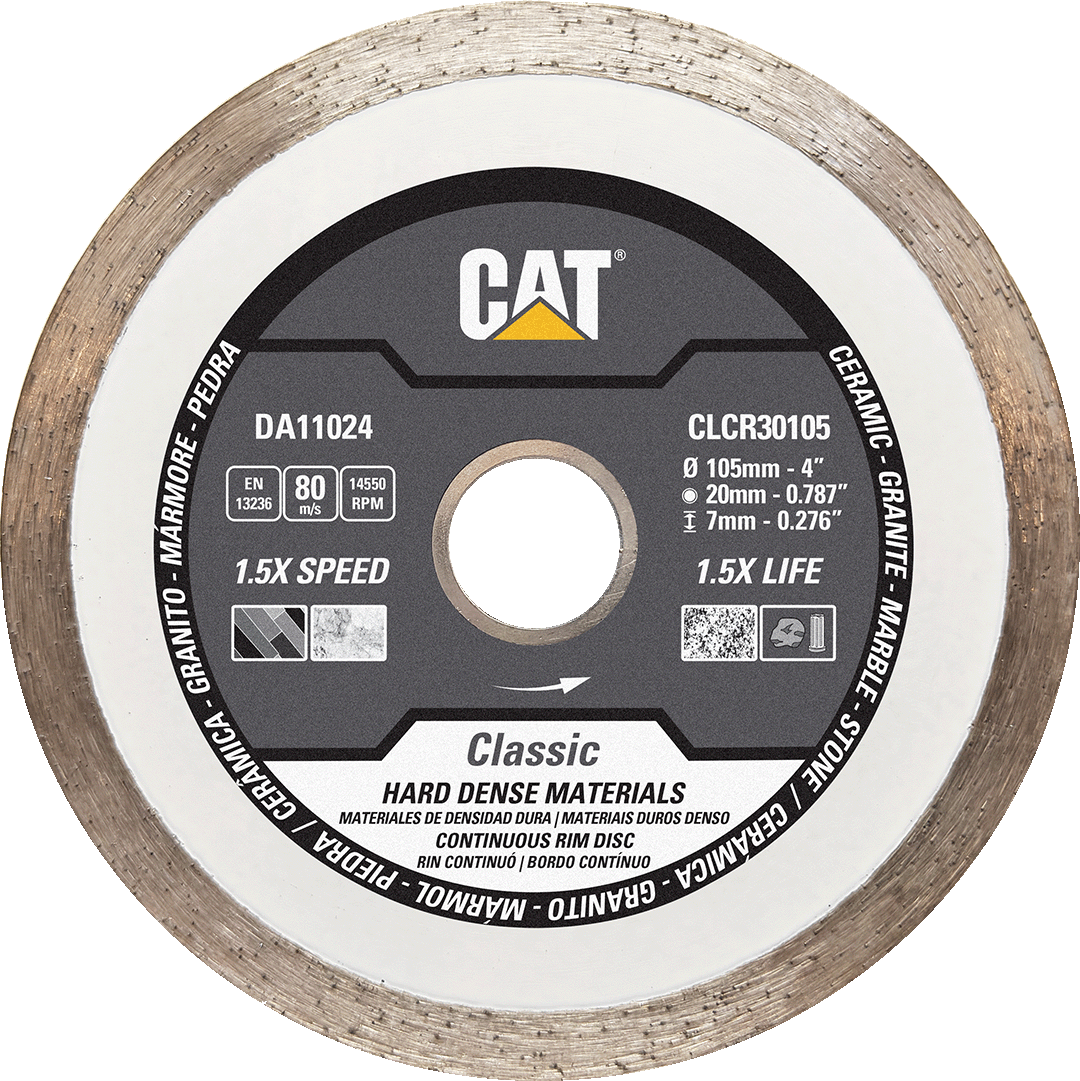

CLCR30 – Continuous Rim Diamond Blade

Tile – Hard Dense Materials

Classic

Cat® Classic super hot press continuous rim blades are a precise cutting diamond blade designed for hard materials and tiles. Good quality diamond grit and high diamond concentration ensures good blade life whilst offering a fast, smooth, chip free cut on the correct applications. The finish of cut and blade life increases with water as a coolant whilst cutting harder materials. The CLCR30 is the ideal choice for contractors wanting a high quality, fast, long life blade.

Attributes

1.5X LIFE - 1.5X SPEED
High quality fine diamond grit
Enhanced performance & life
Super hot press technology
Fully hardened & heat treated steel core
Fast, precise & chip free finish
Continuous rim design.

To see the full product details table, please rotate your device.

Product Type		Diameter		Segment Height		Segment Width		Main Arbor - Bore		Reducing Rings Included
Part No	Code No	MM	Inch	MM	Inch	MM	Inch	MM	Inch	MM	Inch
DA11024	CLCR30105	105	4	7	0.276	1.6	0.063	20	20mm	20 - 15.88	20mm - 5/8
DA11025	CLCR30110	110	4 1/3	8	0.315	1.6	0.063	20	20mm	20 - 15.88	20mm - 5/8
DA11026	CLCR30115	115	4 1/2	7	0.276	1.6	0.063	22.23	7/8	22.23 - 20, 22.23 - 15.88	7/8 - 20mm, 7/8 - 5/8
DA11027	CLCR30125	125	5	7	0.276	1.8	0.071	22.23	7/8	22.23 - 20, 22.23 - 15.88	7/8 - 20mm, 7/8 - 5/8
DA11028	CLCR30150	150	6	7	0.276	1.8	0.071	22.23	7/8	22.23 - 20, 22.23 - 15.88	7/8 - 20mm, 7/8 - 5/8
DA11029	CLCR30180	180	7	7	0.276	1.8	0.071	25.4	1	25.4 - 22.23, 25.4-20, 25.4- 15.88	1 - 7/8, 1 - 20mm, 1 - 5/8
DA11030	CLCR30200	200	8	7	0.276	2.0	0.079	25.4	1	25.4 - 22.23, 25.4-20, 25.4- 15.88	1 - 7/8, 1 - 20mm, 1 - 5/8
DA11031	CLCR30230	230	9	8	0.315	2.0	0.079	25.4	1	25.4 - 22.23, 25.4-20, 25.4- 15.88	1 - 7/8, 1 - 20mm, 1 - 5/8
DA11032	CLCR30250	250	10	8	0.315	2.0	0.079	25.4	1	25.4 - 22.23, 25.4-20, 25.4- 15.88	1 - 7/8, 1 - 20mm, 1 - 5/8
DA11033	CLCR30300	300	12	10	0.394	2.2	0.087	25.4	1	25.4 - 22.23, 25.4-20, 25.4- 15.88	1 - 7/8, 1 - 20mm, 1 - 5/8
DA11034	CLCR30350	350	14	10	0.394	2.4	0.094	25.4	1	25.4 - 22.23, 25.4-20, 25.4- 15.88	1 - 7/8, 1 - 20mm, 1 - 5/8
