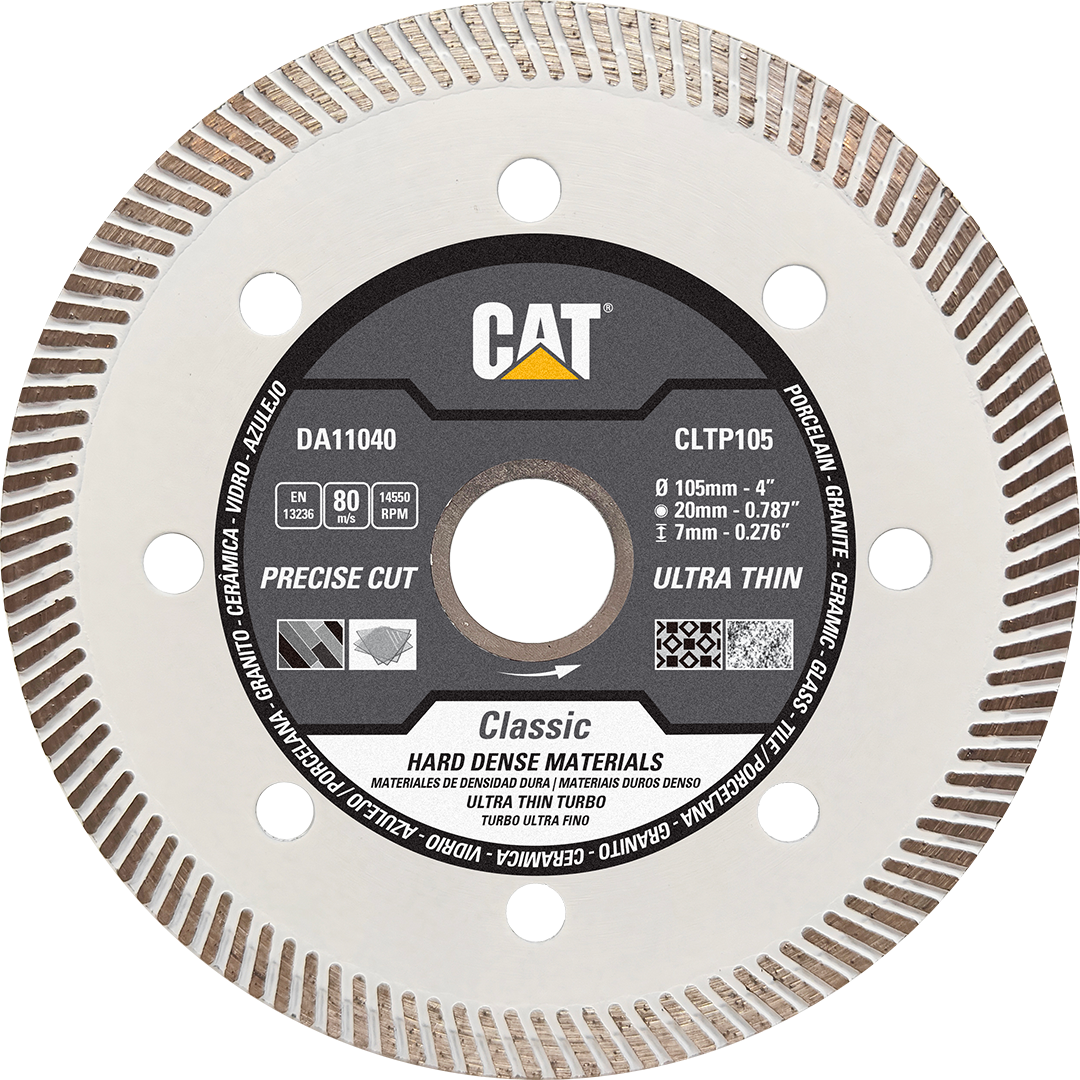

CLTP – Ultra Thin Turbo Diamond Blade

EN13236

CLTP – Ultra Thin Turbo Diamond Blade

Tile – Hard Dense Materials

Classic

Ceramic Tiles
Porcelain Tiles
Glass
Granite
Wet Cutting
Dry Cutting
Fine Finish

Cat® Classic ultra thin super hot press continuous rim turbo diamond blade is the ideal choice for contractors wanting a high quality hard dense material cutting blade for such applications as hard porcelain.The unique segment design and ultra think kerf reduce vibration on the hardest materials. These are ideal for tile contractors looking for a production quality, extended life tile blade that has the ability to cut a wide range of materials. High quality fine diamond grit provide an accurate, clean cut with razor sharp chip free finish on the hardest of materials.

*This blade can be dry cutting on recommended materials with reduced life.

Attributes

  • Ultra thin kerf for ultra fast precise cut
  • Fully hardened & heat treated steel core
  • Armored steel blank for good tension & reduced noise
  • Unique reduced friction segment design
  • Very high quality diamond grit & bonding formulation
  • Super Hot Press Technology
  • Vented cooling holes for rapid heat dispersion.

To see the full product details table, please rotate your device.

Product Type Diameter Segment Height Segment Width Main Arbor - Bore Reducing Rings Included Machines Used
See Key
Part No Code No MM Inch MM Inch MM Inch MM Inch MM Inch
DA11040 CLTP105 105 4 7 0.276 1.2 0.047 20 20mm 20 - 15.88 20mm - 5/8 Angle GrinderCordless GrinderFloor/Wall ChaserMarble CutterTile Saw
DA11041 CLTP110 110 4 1/3 7 0.276 1.2 0.047 20 20mm 20 - 15.88 20mm - 5/8 Angle GrinderCordless GrinderFloor/Wall ChaserMarble CutterTile Saw
DA11042 CLTP115 115 4 1/2 7 0.276 1.2 0.047 22.23 7/8 22.23 - 20, 22.23 - 15.88 7/8 - 20mm, 7/8 - 5/8 Angle GrinderCordless GrinderFloor/Wall ChaserMarble CutterTile Saw
DA11043 CLTP125 125 5 7 0.276 1.3 0.051 22.23 7/8 22.23 - 20, 22.23 - 15.88 7/8 - 20mm, 7/8 - 5/8 Angle GrinderCordless GrinderFloor/Wall ChaserMarble CutterTile Saw

Application

PORCELAIN (PEI HARDNESS CLASS 1-5), PORCELAIN (PEI HARDNESS CLASS 1-3), ENGINEERED ARTIFICIAL STONE, GRANITE, QUARTZITE, CERAMIC TILES, QUARRY TILES, TERRACOTTA, TRAVERTINE, PORPHYRY, BASALT, MARBLE.

Key

Correct bond for application optimal performance, speed & life

Good match bond for application excellent performance speed & life

Acceptable bond for application reduced performance, speed & life

Occasional use only - much reduced performance, speed & short life - glazing & premature wear will occur

Let's do the work Download Brochure
