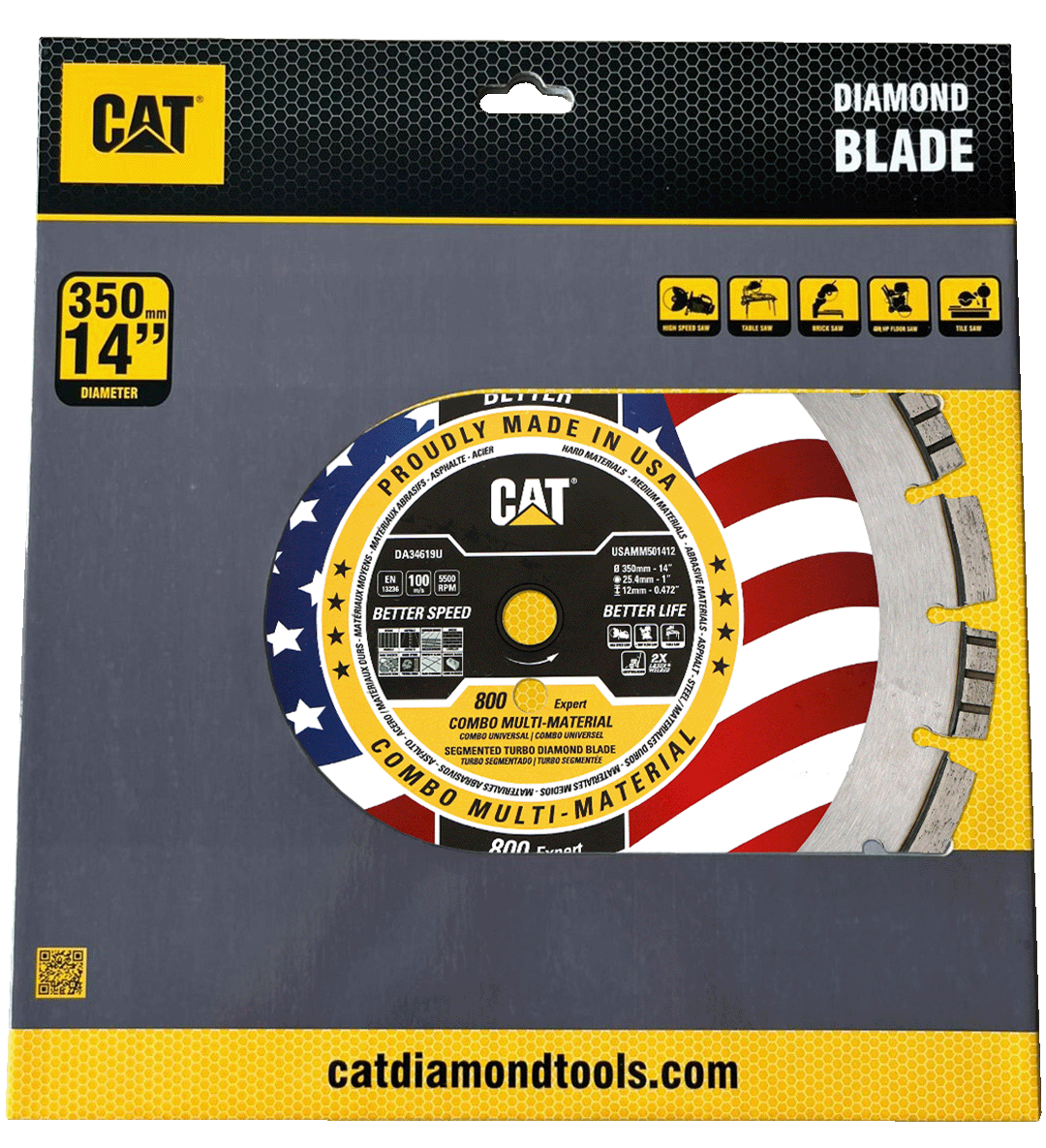

USAMM50-12 Turbo Segmented Diamond Blade
USAMM50-12 Turbo Segmented Diamond Blade
USAMM50-12 Turbo Segmented Diamond Blade
Product Made in USA

EN13236

Product Logo

USAMM50-12 Turbo Segmented Diamond Blade

Universal & Multi Materials

800 Expert

Asphalt
Rebar
Reinforced Concrete
Hard Concrete
Concrete Slabs
Concrete Blocks
Bricks
Paving Bricks
Hard Stone
Asphalt over Concrete
Wet Cutting
Dry Cutting
2x Laser Welded

Cat® Combo Multi-Material blades are designed for intensive use across the 3 performance grades: Good, Better and Best. A true warrior product able to cut virtually everything in its path. Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that is proved to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® Combo Multi-Material blades are able to cut a multitude of materials easily and able to cut through the hard materials including all general purpose, abrasive and asphalt applications including items such as steel rebar. Each increase in performance rating increases the speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height. All blades have special undercut protection segments for clearing debris from the cut alleviating undercutting of the segments.

Attributes

  • VERY HIGH DIAMOND CONCENTRATION & DIAMOND QUALITY
  • UNDERCUT PROTECTION SEGMENTS TO CLEAR DEBRIS
  • FULLY HARDENED & HEAT TREATED STEEL CORE
  • VERY LONG LIFE, VERY FAST SPEED OF CUT, WIDEST APPLICATION SPAN
  • SUPERIOR DIAMOND QUALITY & BOND FORMULATION
  • 2X LASER WELDED FOR SAFETY & STABILITY OF SEGMENTS
  • UNIQUE TURBO ALTERNATE STANDARD SEGMENT DESIGN FOR AGGRESSIVE CUTTING ACTION
  • KEYHOLE GULLET DESIGN FOR DUST EXTRACTION FROM CUT.

To see the full product details table, please rotate your device.

Product Type Diameter Segment Height Segment Width Main Arbor - Bore Reducing Rings Included Machines Used
See Key
Part No Code No MM Inch MM Inch MM Inch MM Inch MM Inch
DA34618U USAMM501212 300 12 12 0.472 3.175 0.125 25.4+P 1+P 20mm 0.78 High Speed SawFloor SawLow HP Walk-BehindTable SawBrick Saw
DA34619U USAMM501412 350 14 12 0.472 3.175 0.125 25.4+P 1+P 20mm 0.78 High Speed SawFloor SawLow HP Walk-BehindTable SawBrick Saw
DA34620U USAMM501612 400 16 12 0.472 3.175 0.125 25.4+P 1+P 20mm 0.78 High Speed SawFloor SawLow HP Walk-BehindTable SawBrick Saw
DA34621U USAMM501812 450 18 12 0.472 3.175 0.125 25.4+P 1+P 20mm 0.78 High Speed SawFloor SawLow HP Walk-BehindTable SawBrick Saw

Application

STEEL REBAR & BOX SECTIONS,DUCTILE IRON, HEAVILY STEEL REINFORCED CONCRETE, CRITICALLY HARD AGGREGATE CONCRETE (FLINT, CHERT), HARD TO MEDIUM AGGREGATE CONCRETE (CHERT - TRAP ROCK - RIVER GRAVEL), MEDIUM AGGREGATE CONCRETE (TRAPROCK - QUARTZ), SOFT - MEDIUM AGGREGATE CONCRETE (GRANITE - LIMESTONE), CLASS A ENGINEERING BRICK 125 N/MM2, REFRACTORY BRICK, CLAY PIPE - ROOF TILES, CLAY PAVIOURS, TERRACOTTA, INDIAN STONE (KOTA), TRAVERTINE, PORPHYRY, CLASS B ENGINEERING BRICK 75N/MM2, BASALT, HARD LIMESTONE, LIMESTONE AGGREGATE CONCRETE, LIGHTLY REINFORCED CONCRETE, CONCRETE PAVIOURS - KERBS - SLABS, CONCRETE ROOF TILES - PIPES, HARD FACING BRICK, MEDIUM FACING BRICK, MEDIUM FACING BRICK, CONCRETE BLOCKS OVER 15N/MM2, HARD SLATE, HARD SANDSTONE (FINE GRIT), MEDIUM SANDSTONE (MEDIUM GRIT).

ALUMINIUM, GRANITE, QUARTZITE, QUARRY TILES, SOFT FACING BRICKS, SOFT SLATE, MARBLE, SOFT SANDSTONE (COARSE GRIT), CONCRETE SCREED, PLASTER - GROUT, ASPHALT OVER CONCRETE, ASPHALT, CONCRETE BLOCK UNDER 15N/MM2, THERMAL BLOCK 7 N/MM2, GREEN CONCRETE UNIVERSAL, GREEN CONCRETE WITH VERY HARD AGGREGATE, GREEN CONCRETE WITH MEDIUM HARD AGGREGATE, GREEN CONCRETE WITH MEDIUM SOFT AGGREGATE, LIGNACITE BLOCKS, LAVA ROCK, PUMICE.

Key

Correct bond for application optimal performance, speed & life

Good match bond for application excellent performance speed & life

Acceptable bond for application reduced performance, speed & life

Occasional use only - much reduced performance, speed & short life - glazing & premature wear will occur
